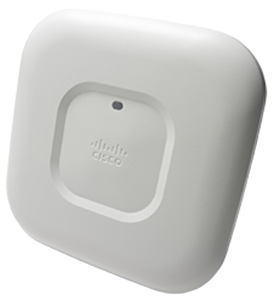

Cisco Aironet 1700 Series Access Point
Entry-Level 802.11ac Access Points

Cisco Aironet 1700 Series Access Point

מחירים נוספים מופיעים למטה, או לחצו כאן!

שימו לב: כל המחירים באתר כוללים מע"מ. החיוב יבוצע על פי שער "העברות והמחאות מכירה" של המטבע (דולר אמריקאי) ביום אישור ההזמנה.


Overview:

The entry-level Cisco Aironet 1700 Series Access Points take advantage of the latest 802.11ac Wi-Fi technology. Designed to meet the growing needs of today's small and medium-sized, wireless, enterprise networks, the Aironet 1700 Series Access Point offer the right value to help customers ease into 802.11ac networking.

If you operate a small or medium-sized enterprise network, deploy the Cisco Aironet 1700 Access Point for the latest 802.11ac Wi-Fi technology at an attractive price. The Aironet 1700 Series meets the growing requirements of wireless networks by delivering better performance than 802.11n and providing key RF management features for improved wireless experiences.

The 1700 series supports 802.11ac Wave 1 standard capabilities. That includes a theoretical connection rate of up to 867 Mbps. The added throughput lets you stay ahead of growing bandwidth requirements as:

  • More wireless clients associate with the network
  • Users tap into bandwidth-heavy multimedia applications
  • Mobile workers increasingly use multiple Wi-Fi devices

Features and Capabilities

The Cisco Aironet 1700 Series is a component of our flagship, 802.11ac-enabled Aironet Series Access Points that deliver high-performance, comprehensive mobility experiences. The series offers

  • Entry-level access points for small to midsize organizations
  • An attractive price and performance for migrating to 802.11ac
  • 802.11ac Wave 1 support with 3x3 multiple input, multiple output (MIMO) equalization
  • Cisco CleanAir Express Spectrum Intelligence across 20-, 40-, and 80-MHz-wide channels
  • Optimized Roaming intelligently decides proper access points as people move

Features:

Building on the Cisco Aironet heritage of RF excellence, the 1700 Series APs run on a purpose-built, innovative chipset with a best-in-class RF architecture. The 1700 is a component of Cisco's series of flagship, 802.11ac-enabled Aironet Series Access Points that deliver robust mobility experiences.

Ideal for Office Environments

  • Sleek design with internal antennas
  • Automatic remedial action
  • UL 2043 plenum-rated for above-ceiling installation or suspension from drop ceilings
  • Controller-based and standalone deployments

Troubleshooting Forensics

  • Historic interference information for back-in-time analysis and faster problem solving
  • 24x7 monitoring
  • Air quality index provides a snapshot of network performance and interference impact

Robust Security and Policy Enforcement

  • Rogue AP detection and detection of denial-of-service attacks
  • Management frame protection detects malicious users and alerts network administrators
  • Policies prohibit devices that interfere or jeopardize network security

Primary Capabilities and How You Benefit

  • 802.11ac Wave 1 support with 3x3 MIMO and two spatial streams
    Delivers higher rates over a greater range for more capacity and reliability than competing APs. Provides bandwidth up to three times more than 802.11n networks
  • Cisco CleanAir Express Spectrum Intelligence
    Detects RF interference and provides basic spectrum analysis capabilities while simplifying ongoing operations across 20-, 40-, and 80-MHz-wide channels
  • Optimized AP Roaming
    Directs client devices to associate with the AP in their coverage range offering the fastest data rate available
  • Multiple input, multiple output (MIMO) equalization
    Boosts uplink performance and reliability by reducing the impact of signal fade

Technical Specifications:

Item Specification
Software Cisco Unified Wireless Network Software Release 7.6MR2 or later
Supported Wireless LAN Controllers Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller; Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches
802.11n Version 2.0 (and Related) Capabilities
  • 3x3 MIMO with two spatial streams
  • Maximal ratio combining (MRC)
  • 802.11n and 802.11a/g beamforming
  • 20- and 40-MHz channels
  • PHY data rates up to 300 Mbps (40 MHz with 5 GHz)
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • 802.11 Dynamic Frequency Selection (DFS)
  • Cyclic shift diversity (CSD) support
802.11ac Wave 1 capabilities
  • 3x3 MIMO with two spatial streams
  • MRC
  • 802.11ac-standard explicit beamforming
  • 20-, 40-, and 80-MHz channels
  • PHY data rates up to 867 Mbps (80 MHz in 5 GHz)
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • 802.11 DFS
  • CSD support
Integrated Antenna
  • 2.4 GHz, Gain 4 dBi, internal omnidirectional, horizontal beamwidth 360°
  • 5 GHz, Gain 6 dBi, internal omnidirectional, horizontal beamwidth 360°
Interfaces
  • 2x10/100/1000BASE-T autosensing (RJ-45)
  • Management console port (RJ-45)
Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions
(W x L x H)
Access point (without mounting bracket): 8.69 x 8.69 x 1.99 in. (22.1 x 22.1 x 5.1 cm)
Weight 2.2 lb (1.0 kg)
Environmental Cisco Aironet 1702i
  • Nonoperating (storage) temperature: −22° to 158°F (-30° to 70°C)
  • Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
  • Operating temperature: 32° to 104°F (0° to 40°C)
  • Operating humidity: 10% to 90% percent (noncondensing)
  • Operating altitude test: 40˚C, 9843 ft.
System Memory
  • 512 MB DRAM
  • 64 MB flash
Input Power Requirements
  • AP1700: 44 to 57 VDC
  • Power Supply and Power Injector: 100 to 240 VAC; 50 to 60 Hz
Power draw AP2700: 15W
Powering options
  • 802.3at PoE+
  • Enhanced PoE
  • Cisco AP1700 power injectors (AIR-PWRINJ5=)
  • Cisco AP1700 local power supply (AIR-PWR-B=)
Warranty Limited Lifetime Hardware Warranty
Compliance
Standards
  • UL 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • UL 2043
  • IEC 60950-1
  • EN 60950-1
  • EN 50155

Radio approvals:

  • FCC Part 15.247, 15.407
  • RSS-210 (Canada)
  • EN 300.328, EN 301.893 (Europe)
  • ARIB-STD 66 (Japan)
  • ARIB-STD T71 (Japan)
  • EMI and susceptibility (Class B)
  • FCC Part 15.107 and 15.109
  • ICES-003 (Canada)
  • VCCI (Japan)
  • EN 301.489-1 and -17 (Europe)
  • EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC

IEEE Standard:

  • IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
  • IEEE 802.11ac Draft 5

Security:

  • 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
  • 802.1X
  • Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)

Extensible Authentication Protocol (EAP) types:

  • Extensible Authentication Protocol-Transport Layer Security (EAP-TLS)
  • EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
  • Protected EAP (PEAP) v0 or EAP-MSCHAPv2
  • Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST)
  • PEAPv1 or EAP-Generic Token Card (GTC)
  • EAP-Subscriber Identity Module (SIM)

Multimedia:

  • Wi-Fi Multimedia (WMM)

Other:

  • FCC Bulletin OET-65C
  • ◦ RSS-102

RF Performance:



Data rates supported
802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
802.11n data rates on 2.4 GHz:
MCS Index1 GI2 = 800 ns GI = 400 ns
20-MHz Rate (Mbps) 20-MHz Rate (Mbps)
0 6.5 7.2
1 13 14.4
2 19.5 21.7
3 26 28.9
4 39 43.3
5 52 57.8
6 58.5 65
7 65 72.2
8 13 14.4
9 26 28.9
10 39 43.3
11 52 57.8
12 78 86.7
13 104 115.6
14 117 130
15 130 144.4
802.11ac data rates (5 GHz):
MCS Index3 Spatial Streams GI4 = 800ns GI = 400ns
  20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 80-MHz Rate (Mbps) 20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 80-MHz Rate (Mbps)
0 1 6.5 13.5 29.3 7.2 15 32.5
1 1 13 24 58.5 14.4 30 65
2 1 19.5 40.5 87.8 21.7 45 97.5
3 1 26 54 117 28.9 60 130
4 1 39 81 175.5 43.3 90 195
5 1 52 108 234 57.8 120 260
6 1 58.5 121.5 263.3 65 135 292.5
7 1 65 135 292.5 72.2 150 325
8 1 78 162 351 86.7 180 390
9 1 - 180 390 - 200 433.3
0 2 13 27 58.5 14.4 30 65
1 2 26 54 117 28.9 60 130
2 2 39 81 175.5 43.3 90 195
3 2 52 108 234 57.8 120 260
4 2 78 162 351 86.7 180 390
5 2 104 216 468 115.6 240 520
6 2 117 243 526.5 130 270 585
7 2 130 270 585 144.4 300 650
8 2 156 324 702 173.3 360 780
9 2 78 780 780 - 400 866.7
Frequency band and 20-MHz operating channels
A (A regulatory domain):
  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
  • 5.745 to 5.825 GHz; 5 channels

C (C regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.745 to 5.825 GHz; 5 channels

D (D regulatory domain):

  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.745 to 5.865 GHz; 7 channels

E (E regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)

H (H regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.150 to 5.350 GHz; 8 channels
  • 5.745 to 5.825 GHz; 5 channels

I (I regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels

K (K regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.620 GHz; 7 channels
  • 5.745 to 5.805 GHz; 4 channels
N (N regulatory domain):
  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.745 to 5.825 GHz; 5 channels

Q (Q regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 11 channels

R (R regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5,660 to 5,805 GHz; 7 channels

S (S regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 11 channels
  • 5.745 to 5.825 GHz; 5 channels

T (T regulatory domain):

  • 2.412 to 2.462 GHz; 11 channels
  • 5.280 to 5.320 GHz; 3 channels
  • 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
  • 5.745 to 5.825 GHz; 5 channels

Z (Z regulatory domain):

  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
  • 5.745 to 5.825 GHz; 5 channels
Note: Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country, visit http://www.cisco.co.il/go/aironet/compliance.
Maximum number of nonoverlapping channels
2.4 GHz
  • 802.11b/g: 20 MHz: 3
  • 802.11n: 20 MHz: 3
5 GHz
  • 802.11a: 20 MHz: 21
  • 802.11n: 20 MHz: 21, 40 MHz: 9
  • 802.11ac: 20 MHz: 21, 40 MHz: 9, 80 MHz: 5
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Receive sensitivity
  • 802.11b (CCK)
  • -101 dBm @ 1 Mbps
  • -99 dBm @ 2 Mbps
  • -93 dBm @ 5.5 Mbps
  • -90 dBm @ 11 Mbps
  • 802.11g (non HT20)
  • -93 dBm @ 6 Mbps
  • -92 dBm @ 9 Mbps
  • -92 dBm @ 12 Mbps
  • -91 dBm @ 18 Mbps
  • -88 dBm @ 24 Mbps
  • -85 dBm @ 36 Mbps
  • -80 dBm @ 48 Mbps
  • -79 dBm @ 54 Mbps
  • 802.11a (non HT20)
  • -93 dBm @ 6 Mbps
  • -92 dBm @ 9 Mbps
  • -92 dBm @ 12 Mbps
  • -91 dBm @ 18 Mbps
  • -88 dBm @ 24 Mbps
  • -85 dBm @ 36 Mbps
  • -80 dBm @ 48 Mbps
  • -79 dBm @ 54 Mbps
2.4 GHz
  • 802.11n (HT20)
  • -93 dBm @ MCS0
  • -92 dBm @ MCS1
  • -90 dBm @ MCS2
  • -87 dBm @ MCS3
  • -84 dBm @ MCS4
  • -79 dBm @ MCS5
  • -78 dBm @ MCS6
  • -77 dBm @ MCS7
  • -92 dBm @ MCS8
  • -90 dBm @ MCS9
  • -88 dBm @ MCS10
  • -85 dBm @ MCS11
  • -82 dBm @ MCS12
  • -78 dBm @ MCS13
  • -76 dBm @ MCS14
  • -75 dBm @ MCS15
5 GHz
  • 802.11n (HT20)
  • -93 dBm @ MCS0
  • -92 dBm @ MCS1
  • -90 dBm @ MCS2
  • -87 dBm @ MCS3
  • -84 dBm @ MCS4
  • -80 dBm @ MCS5
  • -78 dBm @ MCS6
  • -77 dBm @ MCS7
  • -92 dBm @ MCS8
  • -90 dBm @ MCS9
  • -88 dBm @ MCS10
  • -85 dBm @ MCS11
  • -82 dBm @ MCS12
  • -77 dBm @ MCS13
  • -76 dBm @ MCS14
  • -74 dBm @ MCS15
5 GHz
  • 802.11n (HT40)
  • -90 dBm @ MCS0
  • -88 dBm @ MCS1
  • -87 dBm @ MCS2
  • -84 dBm @ MCS3
  • -81 dBm @ MCS4
  • -76 dBm @ MCS5
  • -75 dBm @ MCS6
  • -74 dBm @ MCS7
  • -89 dBm @ MCS8
  • -87 dBm @ MCS9
  • -85 dBm @ MCS10
  • -82 dBm @ MCS11
  • -78 dBm @ MCS12
  • -74 dBm @ MCS13
  • -73 dBm @ MCS14
  • -71 dBm @ MCS15
802.11ac Receive Sensitivity
802.11ac (non HT80)
  • -86 dBm @ 6 Mbps
  • -74 dBm @ 54 Mbps
MCS Index5 Spatial Streams VHT20 VHT40 VHT80 VTH20-STBC VHT40-STBC VHT80-STBC
0 1 -92 dBm -89 dBm -85 dBm -92 dBm -89 dBm -85 dBm
8 1 -73 dBm     -73 dBm
9 1   -68 dBm -65 dBm   -68 dBm -65 dBm
0 2 -91 dBm -87 dBm -84 dBm
8 2 -71 dBm
9 2   -66 dBm -62 dBm
Maximum transmit power
2.4 GHz
  • 802.11b
  • 22 dBm, 3 antennas
  • 802.11g
  • 22 dBm, 3 antennas
  • 802.11n (HT20)
  • 22 dBm, 3 antennas
5 GHz
  • 802.11a
  • 22 dBm, 3 antennas
  • 802.11n (HT20)
  • 22 dBm, 3 antennas
  • 802.11n (HT40)
  • 22 dBm, 3 antennas
  • 802.11ac
  • non-HT80: 22 dBm, 3 antennas
  • VHT20 22 dBm, 3 antennas
  • VHT40: 22 dBm, 3 antennas
  • VHT80: 22 dBm, 3 antennas
  • VHT20-STBC: 22 dBm, 3 antennas
  • VHT40-STBC: 22 dBm, 3 antennas
  • VHT80-STBC: 22 dBm, 3 antennas
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
2.4 GHz
  • 22 dBm (160 mW)
  • 19 dBm (80 mW)
  • 16 dBm (40 mW)
  • 13 dBm (20 mW)
  • 10 dBm (10 mW)
  • 7 dBm (5 mW)
  • 4 dBm (2.5 mW)
  • 2 dBm (1.25 mW)
5 GHz
  • 22 dBm (160 mW)
  • 19 dBm (80 mW)
  • 16 dBm (40 mW)
  • 13 dBm (20 mW)
  • 10 dBm (10 mW)
  • 7 dBm (5 mW)
  • 4 dBm (2.5 mW)
  • 1 dBm (1.25 mW)
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
1MCS Index: The Modulation and Coding Scheme (MCS) index determines the number of spatial streams, the modulation, the coding rate, and data rate values.
2GI: A guard interval (GI) between symbols helps receivers overcome the effects of multipath delays.
3MCS Index: The Modulation and Coding Scheme (MCS) index determines the number of spatial streams, the modulation, the coding rate, and data rate values.
4GI: A guard interval (GI) between symbols helps receivers overcome the effects of multipath delays.
5MCS Index: The Modulation and Coding Scheme (MCS) index determines the number of spatial streams, the modulation, the coding rate, and data rate values.

Documentation:

Download the Cisco Aironet 1700 Series Access Point Datasheet (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.

הערות תמחור:
