Cisco 1130AG Series Access Point
High Performance Wireless Access Points

Cisco 1130AG Series Access Point Device

מחירים נוספים מופיעים למטה, או לחצו כאן!

שימו לב: כל המחירים באתר כוללים מע"מ. החיוב יבוצע על פי שער "העברות והמחאות מכירה" של המטבע (דולר אמריקאי) ביום אישור ההזמנה.

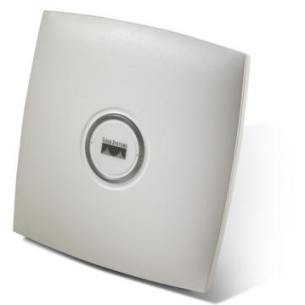

Cisco Aironet 1130AG Series Access Point

Cisco Aironet® 1130AG Series IEEE 802.11a/b/g access points provide high-capacity, high-security, enterprise-class features in an unobtrusive, office-class design, delivering WLAN access with the lowest total cost of ownership. With high-performing dual IEEE 802.11a and 802.11g radios, the Cisco Aironet 1130AG Series provides a combined capacity of up to 108 Mbps to meet the needs of growing WLANs. Hardware-assisted Advanced Encryption Standard (AES) or temporal key integrity protocol (TKIP) encryption provides uncompromised support for interoperable IEEE 802.11i, Wi-Fi Protected Access 2 (WPA2) or WPA security. The Cisco Aironet 1130AG Series uses radio and network management features for simplified deployment, along with built-in omnidirectional antennas that provide robust and predictable WLAN coverage for offices and similar RF environments. The competitively priced Cisco Aironet 1130AG Series is ready to install and easy to manage, reducing the cost of deployment and ongoing maintenance.

The Aironet 1130AG Series is available in:

  • A lightweight version
  • An autonomous version that can be field-upgraded to lightweight operation
  • A single-band 802.11g version for use in regulatory domains that do not allow 802.11a/5 GHz operation

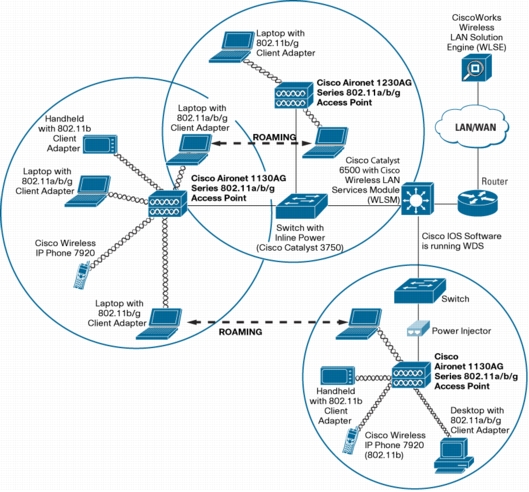

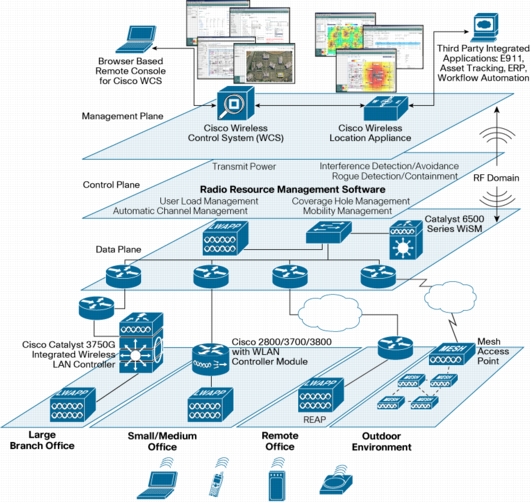

The Cisco Aironet 1130AG Series is available in two versions: unified or autonomous. Unified access points operate with the Lightweight Access Point Protocol (LWAPP) and work in conjunction with Cisco wireless LAN controllers and the Cisco Wireless Control System (WCS). When configured with LWAPP, the Cisco Aironet 1130AG Series can automatically detect the best-available Cisco wireless LAN controller and download appropriate policies and configuration information with no manual intervention. Autonomous access points are based on Cisco IOS® Software and may optionally operate with the CiscoWorks Wireless LAN Solution Engine (WLSE). Autonomous access points, along with the CiscoWorks WLSE, deliver a core set of features and may be field-upgraded to take advantage of the full benefits of the Cisco Unified Wireless Network as requirements evolve.

The Cisco Aironet 1130AG Series delivers optimal value for offices and similar environments. Built-in antennas provide omnidirectional coverage specifically designed for today's open workspaces. A multipurpose mounting bracket easily secures Cisco Aironet 1130AG Series access points to ceilings and walls. With an unobtrusive design, Cisco Aironet 1130AG Series access points are aesthetically pleasing and blend into their environments. For maximum concealment, the access point may be placed above ceilings or suspended ceilings. The UL 2043 rating of the Cisco Aironet 1130AG Series allows the access point to be placed above ceilings in plenum areas regulated by municipal fire codes. Offered at a competitive price, and optimized for easy installation and operation, the Cisco Aironet 1130AG Series helps organizations attain a lower total cost of ownership.

Applications
In offices and similarly open environments, Cisco Aironet 1130AG Series access points may be installed on the ceiling to provide users with continuous coverage as they roam throughout a facility. In school buildings and similar facilities, the access points may be installed on the ceiling of each room and hallway to provide users with full coverage and high network availability. In areas where a ceiling installation may not be practical such as retail hotspots or similar small facilities, the access points can be mounted simply and securely on walls for complete coverage with minimal installation cost.

Award-Winning Security
The Cisco Aironet 1130AG Series has achieved National Institute of Standards and Technology (NIST) FIPS 140-2 level 2 validation and is in process for Information Assurance validation under the National Information Assurance Partnership (NIAP) Common Criteria program. The Cisco Aironet 1130AG Series supports 802.11i, Wi-Fi Protected Access (WPA), WPA2, and numerous Extensible Authentication Protocol (EAP) types. WPA and WPA2 are the Wi-Fi Alliance certifications for interoperable, standards-based WLAN security. These certifications support IEEE 802.1X for user-based authentication, Temporal Key Integrity Protocol (TKIP) for WPA encryption, and Advanced Encryption Standard (AES) for WPA2 encryption. These certifications help to ensure interoperability between Wi-Fi-certified WLAN devices from different manufacturers.

The Cisco Aironet 1130AG Series hardware-accelerated AES encryption supports enterprise-class, government-grade secure encryption over the WLAN without compromising performance. IEEE 802.1X authentication helps to ensure that only authorised users are allowed on the network. Backward compatibility and support for WPA client devices running TKIP, the RC4 encryption algorithm, is also supported by the Cisco Aironet 1130AG Series.

Cisco Aironet 1130AG Series Access Points operating with LWAPP support Cisco Unified Intrusion Detection System/Intrusion Prevention System (IDS/IPS), a software feature that is part of the Cisco Self-Defending Network and is the industry's first integrated wired and wireless security solution. Cisco Unified IDS/IPS takes a comprehensive approach to security-at the wireless edge, wired edge, WAN edge, and through the data center. When an associated client sends malicious traffic through the Cisco Unified Wireless Network, a Cisco wired IDS device detects the attack and sends shun requests to Cisco wireless LAN controllers, which will then disassociate the client device.

Autonomous or unified Cisco Aironet 1130AG Series Access Points support management frame protection for the authentication of 802.11 management frames by the wireless network infrastructure. This allows the network to detect spoofed frames from access points or malicious users impersonating infrastructure access points. If an access point detects a malicious attack, an incident will be generated by the access point and reports will be gathered on the Cisco wireless LAN controller, Cisco WCS, or CiscoWorks WLSE.

Features and Benefits:



Feature Benefit
Dual 802.11a and 802.11g Radios Provides up to 108 Mbps of capacity in a single device for industry-leading capacity and backward compatibility with legacy 802.11b clients.
Supports 15 Nonoverlapping Channels
  • Lower potential interference with neighboring access points simplifies deployment
  • Fewer transmission errors deliver greater throughput
Industry-Leading Radio Design
  • Provides robust signals to long distances
  • Mitigates the effects of multipath signal propagation for more consistent coverage.
Variable Transmit Power Settings
  • Allows access point coverage to be tuned for differing requirements
  • Low-dBm setting supports closer spacing of access points in high-density deployments.
Integrated Antennas
  • Complete system is deployable out of the box without external antennas
  • Specifically designed to provide omnidirectional coverage for offices and similar radio frequency environments.
Hardware-Assisted AES Encryption Provides high security without performance degradation

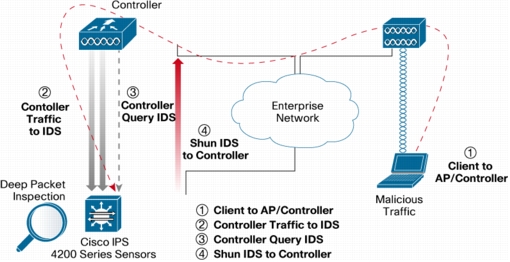

Cisco Unified IDS/IPS This integrated software feature is part of the Cisco Self-Defending Network and is the industry's first integrated wired and wireless security solution. When a trusted client acts maliciously, the wired IDS detects the attack and sends shun requests to Cisco WLAN controllers, which will then disassociate the client device.
Management Frame Protection This feature provides for the authentication of 802.11 management frames by the wireless network infrastructure. This allows the network to detect spoofed frames from access points or malicious users impersonating infrastructure access points. If an access point detects a malicious attack, an incident will be generated by the access points and reports will be gathered on the Cisco wireless LAN controller, Cisco WCS, or CiscoWorks WLSE.
IEEE 802.11i-Compliant; WPA2-Certified and WPA-Certified Helps to ensure interoperable security with wireless LAN client devices from other manufacturers
Low-Profile Design
  • Unobtrusive design blends in to environment
  • "Quiet" LED does not draw attention to it when operating normally and no action is required
Multipurpose and Lockable Mounting Bracket
  • Installs easily to walls, ceilings, and suspended ceiling railways
  • Accommodates standard padlock to prevent theft
Inline Power Support (IEEE 802.3af and Cisco Inline Power)
  • Provides an interoperable alternative to AC power
  • Simplifies deployment by allowing power to be supplied over the Ethernet cable
  • Compatible with 802.3af-compliant power sources
Cisco Green Bulk Packaging To reduce product packaging and preserve the environment, the Cisco Aironet 1130 Series may be ordered in a bulk package that includes 10 access points and 10 mounting kits.

Summary/Conclusion
The Cisco Aironet 1130AG Series provides the ideal enterprise access point for offices and similar environments. With two high-performance radios, these access points provide simultaneous support for the 802.11a and 802.11g standards, offering 108 Mbps of capacity for your growing WLAN. Incorporating AES encryption in hardware, the Cisco Aironet 1130AG Series complies with the 802.11i security standard and is WPA2-certified, helping to assure that your network employs the strongest security available while maintaining interoperability with products from other manufacturers. Additional design features, including diversity antennas with omnidirectional coverage and an unobtrusive form factor, along with an attractive price, provide low total cost of ownership.

For office environments, the Cisco Aironet 1130AG Series is a cost-compelling solution for a high-capacity, high-security, enterprise-class WLAN.

Technical Specifications:



Cisco Aironet 1130AG Series Access Points Specification
Software
  • Cisco IOS Software Release 12.3(8)JA or later (autonomous).
  • Cisco IOS Software Release 12.3(11)JX or later (Lightweight Mode).
  • Cisco Unified Wireless Network Software Release 4.0 or later.
Data Rates Supported
  • 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
  • 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
Network Standard
  • IEEE 802.11a, 802.11b, and 802.11g
Uplink
  • Autosensing 802.3 10/100BASE-T Ethernet
Frequency Band and Operating Channels Americas (FCC)
  • 2.412 to 2.462 GHz; 11 channels
  • 5.15 to 5.35, 5.725 to 5.825 GHz; 12 channels

China

  • 2.412 to 2.472 GHz; 13 channels
  • 5.725 to 5.825 GHz; 4 channels ETSI

ETSI

  • 2.412 to 2.472 GHz; 13 channels
  • 5.15 to 5.725 GHz; 19 channels

Israel

  • 2.432 to 2.472 GHz; 9 channels
  • 5.15 to 5.35 GHz; 8 channels

Japan (TELEC)

  • 2.412 to 2.472 GHz; 13 channels Orthogonal Frequency Division Multiplexing (OFDM)
  • 2.412 to 2.484 GHz; 14 channels Complementary Code Keying (CCK)
  • 5.15 to 5.25 GHz; 4 channels

Japan-P (TELEC 2 [Japan2] Cnfg)

  • 2.412 to 2.472 GHz; 13 channels Orthogonal Frequency Division Multiplexing
  • 5.15 to 5.35 GHz, 8 channels

Korea

  • 2.412 to 2.472 GHz; 13 channels
  • 5.15 to 5.35, 5.46 to 5.72, 5.725 to 5.825; 19 channels

North America (not FCC)

  • 2.412 to 2.462 GHz; 11 channels
  • 5.15 to 5.35, 5.725 to 5.825 GHz; 12 channels

Singapore

  • 2.412 to 2.472 GHz; 13 channels
  • 5.15 to 5.35, 5.725 to 5.825 GHz; 12 channels

Taiwan

  • 2.412 to 2.462 GHz; 11 channels
  • 5.25-5.35 GHz, 5.725 to 5.825, 7 channels
Nonoverlapping Channels 802.11a: Up to 19 802.11b/g: 3
Receive Sensitivity (Typical) 802.11a:
  • 6 Mbps: -87 dBm
  • 9 Mbps: -87 dBm
  • 12 Mbps: -85 dBm
  • 18 Mbps: -84 dBm
  • 24 Mbps: -81 dBm
  • 36 Mbps: -78 dBm
  • 48 Mbps: -73 dBm
  • 54 Mbps: -71 dBm

802.11g:

  • 1 Mbps: -93 dBm
  • 2 Mbps: -91 dBm
  • 5.5 Mbps: -88 dBm
  • 6 Mbps: -86 dBm
  • 9 Mbps: -85 dBm
  • 11 Mbps: -85 dBm
  • 12 Mbps: -84 dBm
  • 18 Mbps: -83 dBm
  • 24 Mbps: -79 dBm
  • 36 Mbps: -77 dBm
  • 48 Mbps: -72 dBm
  • 54 Mbps: -70 dBm
Available Transmit Power Settings (Maximum Power Setting will Vary by Channel and According to Individual Country Regulations) 802.11a
  • OFDM:
  •  17 dBm (50 mW)
  • 15 dBm (30 mW)
  • 14 dBm (25 mW)
  • 11 dBm (12 mW)
  • 8 dBm (6 mW)
  • 5 dBm (3 mW)
  • 2 mW (2 dBm)
  • -1 dBm (1 mW)
802.11g
  • CCK:
  • 20 dBm (100 mW)
  • 17 dBm (50 mW)
  • 14 dBm (25 mW)
  • 11 dBm (12 mW)
  • 8 dBm (6 mW)
  • 5 dBm (3 mW)
  • 2 dBm (2 mW)
  • -1 dBm (1 mW)
OFDM
  • 17 dBm (50 mW)
  • 14 dBm (25 mW)
  • 11 dBm (12 mW)
  • 8 dBm (6 mW)
  • 5 dBm (3 mW)
  • 2 dBm (2 mW)
  • -1 dBm (1 mW)
Range Indoor (Distance Across Open Office Environment): Outdoor:
802.11a:
  • 80 ft (24 m) @ 54 Mbps
  • 150 ft (45 m) @ 48 Mbps
  • 200 ft (60 m) @ 36 Mbps
  • 225 ft (69 m) @ 24 Mbps
  • 250 ft (76 m) @ 18 Mbps
  • 275 ft (84 m) @ 12 Mbps
  • 300 ft (91 m) @ 9 Mbps
  • 325 ft (100 m) @ 6 Mbps
802.11g:
  • 100 ft (30 m) @ 54 Mbps
  • 175 ft (53 m) @ 48 Mbps
  • 250 ft (76 m) @ 36 Mbps
  • 275 ft (84 m) @ 24 Mbps
  • 325 ft (100 m) @ 18 Mbps
  • 350 ft (107 m) @ 12 Mbps
  • 360 ft (110 m) @ 11 Mbps
  • 375 ft (114 m) @ 9 Mbps
  • 400 ft (122 m) @ 6 Mbps
  • 420 ft (128 m) @ 5.5 Mbps
  • 440 ft (134 m) @ 2 Mbps
  • 450 ft (137 m) @ 1 Mbps
802.11a:
  • 100 ft (30 m) at 54 Mbps
  • 300 ft (91 m) at 48 Mbps
  • 425 ft (130 m) at 36 Mbps
  • 500 ft (152 m) at 24 Mbps
  • 550 ft (168 m) at 18 Mbps
  • 600 ft (183 m) at 12 Mbps
  • 625 ft (190 m) at 9 Mbps
  • 650 ft (198 m) at 6 Mbps
802.11g:
  • 120 ft (37 m) at 54 Mbps
  • 350 ft (107 m) at 48 Mbps
  • 550 ft (168 m) at 36 Mbps
  • 650 ft (198 m) at 24 Mbps
  • 750 ft (229 m) at 18 Mbps
  • 800 ft (244 m) at 12 Mbps
  • 820 ft (250 m) at 11 Mbps
  • 875 ft (267 m) at 9 Mbps
  • 900 ft (274 m) at 6 Mbps
  • 910 ft (277 m) at 5.5 Mbps
  • 940 ft (287 m) at 2 Mbps
  • 950 ft (290 m) at 1 Mbps
Ranges and actual throughput vary based upon numerous environmental factors so individual performance may differ.
Compliance Standards

Safety:

  • UL 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • UL 2043
  • IEC 60950-1
  • EN 60950-1
  • NIST FIPS 140-2 level 2 validation

Radio approvals:

  • FCC Part 15.247, 15.407
  • RSS-210 (Canada)
  • EN 300.328, EN 301.893 (Europe)
  • ARIB-STD 33 (Japan)
  • ARIB-STD 66 (Japan)
  • ARIB-STD T71 (Japan)
  • AS/NZS 4268.2003 (Australia and New Zealand)

EMI and susceptibility (Class B)

  • FCC Part 15.107 and 15.109
  • ICES-003 (Canada)
  • VCCI (Japan)
  • EN 301.489-1 and -17 (Europe)

Security:

  • 802.11i, WPA2, WPA
  • 802.1X
  • AES, TKIP
  • FIPS 140-2 Pre-Validation List
  • Common Criteria (when running Cisco IOS software)

Other:

  • IEEE 802.11g and IEEE 802.11a
  • FCC Bulletin OET-65C
  • RSS-102
Antenna 2.4 GHz
  • Gain 3.0 dBi
  • Horizontal Beamwidth 360°

5 GHz

  • Gain 4.5 dBi
  • Horizontal Beamwidth 360°
Security Authentication:
  • Security Standards
  • WPA
  • WPA2 (802.11i)
  • Cisco TKIP
  • Cisco message integrity check (MIC)
  • IEEE 802.11 WEP keys of 40 bits and 128 bits

802.1X EAP types:

  • EAP-Flexible Authentication via Secure Tunneling (EAP-FAST)
  • Protected EAP-Generic Token Card (PEAP-GTC)
  • PEAP-Microsoft Challenge Authentication Protocol Version 2 (PEAP-MSCHAP)
  • EAP-Transport Layer Security (EAP-TLS)
  • EAP-Tunneled TLS (EAP-TTLS)
  • EAP-Subscriber Identity Module (EAP-SIM)
  • Cisco LEAP

Encryption:

  • AES-CCMP encryption (WPA2)
  • TKIP (WPA)
  • Cisco TKIP
  • WPA TKIP
  • IEEE 802.11 WEP keys of 40 bits and 128 bits
Status LEDs External:
  • Status LED indicates operating state, association status, error/warning condition, boot sequence, and maintenance status

Internal:

  • Ethernet LED indicates activity over the Ethernet, status
  • Radio LED indicates activity over the radios, status
Dimensions
(H x W x D)
7.5 in. x 7.5 in. x 1.3 in. (19.1 x 19.1 x 3.3 cm)
Weight 1.5 lb (0.67 kg)
Environmental
  • 32-104°F (0-40°C)
  • 10-90 percent humidity (noncondensing)
System Memory
  • 32 MB RAM
  • 16 MB Flash
Input Power Requirements
  • 100-240 VAC; 50-60Hz (power supply)
  • 36-57 VDC (device)
Power Draw 12.2W maximum
Warranty One Year
Wi-Fi Certification
System Requirements
Browser Using the Web browser management GUI requires a computer running Internet Explorer Version 6.0 or later, or Netscape Navigator Version 7.0 or later.
PoE Power sourcing equipment compliant with Cisco inline power or IEEE 802.3af, and providing at least 12.2W at 48 VDC

Cisco Aironet Wireless Access Points Solution:

As WLAN deployments expand, security, scalability, reliability, ease of deployment, and management become increasingly important. Cisco provides a comprehensive line of access points that deliver enterprise-class features for business-ready wireless LANs.

Access Point products

Executive Summary

Access points are critical elements of the Cisco Unified Wireless Network. Cisco single- and dual-band access points are designed for offices and similar environments, challenging RF environments, and the outdoors. The devices are available in two versions: unified or autonomous. Unified access points operate with the Lightweight Access Point Protocol (LWAPP) and work in conjunction with Cisco wireless LAN controllers and the Wireless Control System (WCS. Autonomous access points are based on Cisco IOS® Software and may optionally operate with the CiscoWorks Wireless LAN Solution Engine (WLSE). Autonomous access points, along with the WLSE, deliver a core set of features and may be field-upgraded to take advantage of the full benefits of the Cisco Unified Wireless Network as requirements evolve.

To make the best choices for their particular applications, customers need to understand the features and benefits of the different Cisco Aironet® access points. This solution overview details the capabilities of each of the devices in the Cisco Aironet Family of wireless access points

Management Paradigm

As wireless LANs become increasingly mission-critical and evolve in terms of scale and capabilities, the way the wireless deployment is managed must evolve as well. Because each customer and each deployment is unique, Cisco provides differing feature sets and differing management paradigms to address these customer-specific requirements

Cisco provides a core feature set that includes autonomous access points and the CiscoWorks WLSE management appliance. The core feature set provides a base set of capabilities that are required for enterprise deployments. Core features include secure connectivity through support for 802.11i Wi-Fi Protected Access 2 (WPA2), fast and secure Layer 2 roaming, and interfaces to a variety of third-party applications and products. Most Cisco access points are available in versions designed for autonomous operation. These devices may be upgraded in the field to lightweight mode, thereby providing customers with a smooth path from core to unified features.

The Cisco unified feature set is delivered by lightweight access points, wireless LAN controllers, and the Wireless Control System (WCS) management solution. The unified feature set represents the most comprehensive set of capabilities in the industry, including guest access, wireless intrusion detection and intrusion prevention, scalable Layer 3 mobility, and location services. Most Cisco Aironet access points are available in versions designed for lightweight operation.

Deployment Environments

Wireless LANs are becoming commonplace in numerous environments, including offices, schools, factories, warehouses, and even the outdoors. At the same time, the wireless industry is evolving from lower-capacity, single-band devices to high-capacity, dual-band solutions. The Cisco Aironet Family of access points meets these various application requirements by providing:

  • Single- and dual-band access points
  • Devices designed for indoor and outdoor deployments
  • A consistent hardware feature set and predictable RF performance for deployment across the enterprise

As WLAN deployment expands into more applications and installation scenarios, a diverse line of access points is required to meet the associated capacity, coverage, and environmental requirements. The Cisco product line includes access points designed for offices and similar facilities, such as hospitals and retail environments, challenging RF environments like factories and warehouses, and the outdoors. These devices can be installed on desktops, on walls, on ceilings, above ceilings, and on top of poles.

While application requirements may vary, Cisco understands that all enterprise customers require uncompromised network security, scalable manageability, and an evolving set of network services. That's why all Cisco Aironet access points support the Cisco Unified Wireless Network, a framework for wired and wireless integration that delivers the security, manageability, and services that enterprises have come to expect from Cisco on both wired and wireless networks.

Solution

Addressing Feature Requirements
As wireless LAN usage has evolved from basic transport for largely transactional applications, so have the feature expectations of wireless LAN users and administrators. This change has come about on a segment-by-segment, customer-by-customer basis. It is critical for Cisco to provide differing feature sets to best fit differing customer requirements. Given that customer requirements can evolve during the lifetime of a wireless LAN deployment, it is also necessary to provide a means of smoothly upgrading this feature set for the installed base of products, with minimal disruption to network operations.

Cisco's unified wireless LAN feature set offers the features required for most enterprise deployments. Some deployments may not yet require these advanced capabilities. To address these evolving requirements, customers can select lightweight access points, or they can upgrade autonomous access points in the field to lightweight operation. With Cisco, customers can choose the feature set that is right for them, at the time that it is right for them. Table 1 provides a summary of the operational capabilities of various Cisco Aironet access points.

Operational Capabilities of Cisco Aironet Access Points
Cisco Series Autonomous Operation Lightweight Operation
1100 Series Yes Yes
1130AG Series Yes Yes
1200 Series Yes Yes
1230AG Series Yes Yes
1240AG Series Yes Yes
1250 Series Yes Yes
1300 Series Yes Yes
1500 Series No Yes

Addressing Capacity Requirements
In just a few years, WLANs have evolved from proprietary systems with sub-Mbps capabilities to standardized offerings operating at data rates as high as 600 Mbps for dual-band 802.11n access points. These high data rates are available by taking advantage of the emerging 802.11n draft 2.0 standard with radios operating in both the 2.4 GHz band and the 5 GHz band. 802.11n draft 2.0 offers backward compatibility with 802.11a/b/g devices. Both 802.11b/g and 802.11n draft 2.0 are limited to three nonoverlapping channels when deployed in the 2.4 GHz band. 802.11a and 802.11n draft 2.0 support as many as 23 channels in the 5 GHz band (depending upon local regulations). To provide both backward compatibility and high capacity, WLAN client vendors are migrating to 802.11n-capable client devices, although many devices will continue to support the 802.11a/b/g standards and the 802.11n support complete backwards compatibility to ensure investment protection.

Deploying an infrastructure that takes full advantage of next generation wireless with 802.11n makes sense if capacity or reliability is currently an issue or is expected to become an issue during the useful life of the infrastructure devices. Given the rapid expansion of wireless-enabled devices, increasing capacity requirements are likely to apply to most WLAN installations. For this majority of applications, access points that support the emerging 802.11n draft 2.0 standard represents a better long-term value, particularly given the low price premium relative to performance. For the few applications that are not expected to present capacity issues in the near term, customers can choose existing 802.11a/g dual-radio access points.

Cisco Aironet Access Point Support for 802.11a/b/g and 802.11n draft 2.0
Cisco Series 802.11b 802.11g 802.11a 802.11n Draft 2.0
1100 Series Yes Yes No No
1130AG Series Yes Yes Yes No
1200 Series Yes Yes Optional1 No
1230AG Series Yes Yes Yes No
1240AG Series Yes Yes Yes No
1250 Series Yes Yes Yes Yes
1300 Series Yes Yes No No
1500 Series Yes Yes Yes No

1 With a hardware upgrade module, Cisco Aironet 1200 Series Access Points may be field-upgraded to support 802.11a.

Award-Winning Security

The Cisco Aironet Series access points supports 802.11i, Wi-Fi Protected Access (WPA), WPA2, and numerous Extensible Authentication Protocol (EAP) types. WPA and WPA2 are the Wi-Fi Alliance certifications for interoperable, standards-based WLAN security. These certifications support IEEE 802.1X for user-based authentication, Temporal Key Integrity Protocol (TKIP) for WPA encryption, and Advanced Encryption Standard (AES) for WPA2 encryption. These certifications help to ensure interoperability between Wi-Fi-certified WLAN devices from different manufacturers.

Cisco Aironet Series Access Points operating with LWAPP support Cisco Unified Intrusion Detection System/Intrusion Prevention System (IDS/IPS), a software feature that is part of the Cisco Self-Defending Network and is the industry's first integrated wired and wireless security solution. Cisco Unified IDS/IPS takes a comprehensive approach to security-at the wireless edge, wired edge, WAN edge, and through the data center. When an associated client sends malicious traffic through the Cisco Unified Wireless Network, a Cisco wired IDS device detects the attack and sends shun requests to Cisco wireless LAN controllers, which will then disassociate the client device.

Unified IDS IPS diagram

Figure 1. Cisco Unified IDS/IPS Detects Malicious Attacks Allowing
the WLAN Controller to Disassociate the Offending Client Device

Autonomous or unified Cisco Aironet Series access points support management frame protection for the authentication of 802.11 management frames by the wireless network infrastructure. This allows the network to detect spoofed frames from access points or malicious users impersonating infrastructure access points. If an access point detects a malicious attack, an incident will be generated by the access point and reports will be gathered on the Cisco wireless LAN controller, Cisco WCS, or CiscoWorks WLSE.

Management and Deployment Flexibility

The Cisco Aironet Series access points are key elements of the Cisco Unified Wireless Network, a comprehensive solution that delivers an integrated, end-to-end wired and wireless network. Using the radio and network management features of the Cisco Unified Wireless Network for simplified deployment, the access points extend the security, scalability, reliability, ease of deployment, and manageability available in wired networks to the wireless LAN. In addition to management flexibility the Cisco Aironet Series offers investment protection deployment flexibility with Hybrid REAP and Link Role Flexibility.

Hybrid REAP
Hybrid Remote Edge Access Point (Figure 2) functionality is supported on the Cisco Aironet 1240AG and 1130AG Series Access Points. It allows users to deploy access points in remote offices, and choose whether they would like to have traffic bridged locally, or tunneled over the WAN over LWAPP on a per SSID basis. If users choose to bridge traffic locally, then it is bridged onto separate VLANs that directly correlate to an SSID (i.e. there is a 1:1 mapping of SSIDs to VLANs when traffic is bridged locally).

Remote Edge AP diagram

Figure 2. Remote Edge Access Point (REAP) Capabilities Allow Users to
Deploy Access Points in Remote Offices, and Choose Whether
They Would Like to Have Traffic Bridged Locally, or Tunneled
over the WAN over LWAPP on a Per-SSID Basis

Users receive their IP address locally within the branch, but authenticate at a central site when using 802.1x, 802.11i, MAC authentication, web authentication, or NAC is in use. If any type of pre-shared key is used (i.e. WEP, WPA-PSK), then there is no need for central authentication. After central authentication, the user traffic can still be bridged locally.

If a WAN link goes down, no new users using authentication can be added into the network, however users that have already authenticated remain connected. Users using pre-shared key remain connected and new pre-shared key users can still associate with the network since centralized authentication is not necessary. When the WAN link becomes active again, all users are disassociated and then authenticated to the network. This is used to ensure that the controller has accurate, up to date information about the users who are on the network.

Following are key elements of Hybrid REAP functionality:

  • Supported only on Cisco Aironet 1240AG and 1130AG Series Access Points.
  • 8 advertised WLANs/SSIDs that terminate on a Controller or bridged locally.
  • Locally bridged WLAN/SSID can be mapped to a VLAN.
  • There is support for NAC/Web Auth/802.1x/802.11i on a per WLAN/SSID basis. These protocols are handled centrally, and subsequently the traffic can be bridged locally or continue to be tunneled back to the controller.
  • If an AP has never joined a Controller, it can be primed with an IP address, subnet mask, default gateway, and IP address of a Controller. After the AP has contacted the Controller the console is no longer available.
  • Cisco recommends that only two Hybrid REAPs be used in any one location over a WAN connection. This configuration is recommended because of the WAN bandwidth required.

Link Role Flexibility
The autonomous versions of the Cisco Aironet 1300 Series, 1240AG Series, 1230AG Series, and the 1200 Series offer link role flexibility, which provides both access point and bridge functions through configuration of each radio as an access point, repeater, root bridge, non-root bridge, or workgroup bridge. This configuration flexibility enables the access points to address a wide range of applications, including basic wireless LAN coverage, wireless LAN coverage with wireless backhaul, and more traditional bridging applications.

Wireless LAN Link Role Flexibility Applications for Dual-Band Access Points
Radio 1(802.11g or 802.11a) Radio 2 (802.11g or 802.11a) RJ-45 State
Root Bridge (RB) Root bridge, non-root bridge, access point, or workgroup bridge Uplink
Non-root Bridge (NRB) Root bridge, non-root bridge, access point, or workgroup bridge Uplink
Workgroup Bridge (WGB) Root bridge, non-root bridge, or access point Uplink
Access Point (AP) Root bridge, non-root bridge, access point, or workgroup bridge Uplink
Repeater Root bridge, non-root bridge, or access point Downlink
Note: Only one 802.11g radio and one 802.11a radio are supported.

Office Access Points

Cisco Aironet 1130AG Series IEEE 802.11a/b/g Access Point
Packages high-capacity, high-security, and enterprise-class features to deliver wireless LAN access for a low total cost of ownership. The device is available in either a lightweight version or an autonomous version that may be field-upgraded to lightweight operation. With support for both lightweight and autonomous operation, customers can enjoy the simplicity and efficiency of a common hardware platform even while having a hybrid lightweight and autonomous deployment. Designed for wireless LAN coverage in offices and similar RF environments, this unobtrusive access point features integrated antennas and dual IEEE 802.11a/g radios for robust and predictable coverage, delivering a combined capacity of 108 Mbps. The product comes complete with all necessary mounting hardware to provide for an installation that is both secure and consistent with contemporary office décor. The mounting bracket locks the access point as well as the Ethernet and console cables in place to prevent theft and tampering. The Cisco Aironet 1130AG Series is ready to install and easy to manage, reducing the cost of deployment and ongoing maintenance.

Cisco Aironet 1100 Series Access Point
Offers customers an affordable, easy-to-install, 802.11g single-band access point that features enterprise-class management, security, and scalability. The device is available in either a lightweight version or an autonomous version that may be field-upgraded to lightweight operation.

Indoor Access Points for Challenging RF Environments

Cisco Aironet 1250 Series IEEE 802.11n draft 2.0 Access Point
The Cisco Aironet® 1250 Series is the first enterprise-class access point to support the IEEE 802.11n draft 2.0 standard. 802.11n offers combined data rates of up to 600 Mbps to provide users with mobile access to high-bandwidth data, voice, and video applications regardless of their location. Through the use of multiple-input multiple-output (MIMO) technology, 802.11n also provides reliable and predictable WLAN coverage to improve the end-user experience for both existing 802.11a/b/g clients and new 802.11n clients. The robust Cisco Aironet® 1250 Series Access Point is a modular platform designed to be easily field-upgradeable to support a variety of wireless capabilities. This modularity allows businesses to deploy existing wireless technologies today with the confidence that their network investment will extend to support emerging and future wireless technologies.

Cisco Aironet 1240AG Series IEEE 802.11a/b/g Access Point
Delivers the versatility, high capacity, security, and enterprise-class features required in more challenging RF environments, such as warehouses, factories, and retailers. The device is available in either a lightweight or an autonomous version that may be field-upgraded to lightweight operation. With support for both lightweight and autonomous operation, customers can enjoy the simplicity and efficiency of having a common hardware platform even while having a hybrid lightweight and autonomous deployment. Designed for wireless LANs in rugged environments or installations that require specialized external antennas, the Cisco Aironet 1240AG Series features diversity antenna connectors for both 2.4 and 5 GHz bands to provide extended range, coverage versatility, and more flexible installation options. The Cisco Aironet 1240AG Series Access points combines this versatility with industry-leading transmit power, receive sensitivity, and delay spread for high-multipath environments, providing reliable performance and throughput under the most demanding conditions. A second-generation dual-band access point, the Cisco Aironet 1240AG Series supports IEEE 802.3af Power over Ethernet (PoE). The product comes complete with all necessary mounting hardware to provide for an installation that is both secure and rugged. The mounting bracket locks the access point as well as the Ethernet and console cables in place to prevent theft and tampering.

Cisco Aironet 1200 Series Access Point
Offers the same versatility, high capacity, security, and enterprise-class features demanded by industrial wireless LAN customers in a single-band 802.11g solution. The modular device provides the flexibility to field-upgrade to a dual-band 802.11a/g network by adding a CardBus-based 802.11a upgrade module that can be easily installed in Cisco Aironet 1200 Series access points that were originally configured for 802.11g.

Cisco Aironet 1230AG Series Access Point
The Cisco Aironet 1230AG Series is a preconfigured dual-band version of the 1200 Series, providing support for 802.11a and 802.11g. This first-generation, dual-band device does not, however, provide the same performance and support for 802.3af PoE as does the 1240AG Series.

Outdoor Access Points and Bridges

Cisco Aironet 1300 Series IEEE 802.11g Wireless Outdoor Access Point and Bridge
Provides access point, wireless bridge, and workgroup bridge capabilities with enhanced WLAN security. For high-speed, cost-effective wireless connectivity between multiple fixed or mobile networks and clients, this ruggedized platform is ideal for public access for outdoor areas, network connections within a campus area, or outdoor infrastructures for mobile networks and users. Engineered specifically for harsh outdoor environments, the Cisco Aironet 1300 Series is ideal for WLANs requiring outdoor coverage. The Cisco Aironet 1300 Series is available in either a lightweight version or an autonomous version that may be field-upgraded to lightweight operation.

Note: The Cisco Aironet 1300 Series supports LWAPP when operating as an access point. When it operates in bridge mode, however, it does not support the LWAPP protocol.

Cisco Aironet 1500 Series Lightweight Outdoor Mesh Access Point
The Cisco Aironet 1500 Series enables cost-effective, scalable deployment of secure outdoor wireless LANs. With dual-band, simultaneous support for IEEE 802.11a and 802.11b/g standards, the Cisco Aironet 1500 Series employs a patent-pending Adaptive Wireless Path Protocol to form a dynamic wireless mesh network between remote access points, and delivers secure wireless access to any Wi-Fi-compliant client.

Access Point Features and Benefits

Table provides a summary of the Cisco Aironet access points that are best suited for different environments.

Cisco Aironet Access Points for Different Environments
Cisco Series Offices and Similar Environments Challenging Indoor RF Environments Outdoors
1100 Series Recommended** Not Recommended Not Recommended
1130AG Series Ideal Not Recommended Not Recommended
1200 Series Recommended*** Recommended Recommended****
1230AG Series Recommended*** Recommended Recommended****
1240AG Series Recommended*** Recommended Recommended****
1250 Series Recommended*** Ideal Recommended****
1300 Series Not Recommended Not Recommended Ideal**
1500 Series Not Recommended Not Recommended Ideal*

* For lightweight deployment only.
** For autonomous deployment only.
*** Particularly for deployments above suspended ceilings.
**** Can be deployed outdoors in a weatherproof NEMA-rated enclosure.
Table 5 summarizes the complete Cisco Aironet Family of access points.

Architecture of the Cisco Unified Wireless Network

Cisco Aironet access points are a key component of the Cisco Unified Wireless Network. The Cisco Unified Wireless Network cost-effectively addresses the wireless LAN security, deployment, management, and control issues facing enterprises. This framework integrates and extends wired and wireless networks to deliver scalable, manageable, and secure wireless LANs with the lowest total cost of ownership. It provides the same level of security, scalability, reliability, ease of deployment, and management for wireless LANs that organizations expect from their wired LANs. It includes innovative RF technology capabilities that enable real-time access to core business applications while at the same time delivering enterprise-class, secure connectivity.

With the Cisco Unified Wireless Network, the best elements of wireless and wired networking are combined to bring mobility to the enterprise in a secure and reliable manner. The flexibility of the Cisco Unified Wireless Network allows network managers to design networks to meet their specific needs, whether implementing highly integrated network designs or simple overlay networks.

Figure 3 depicts a typical unified access point deployment. Figure 4 depicts a typical autonomous access point deployment.

Unitied AP Deployment

Figure 3. Unified Access Point Deployment

Autonomous AP Deployment

Figure 4. Autonomous Access Point Deployment

Supporting Products, Partners, and Service Offerings

Cisco Wireless LAN Controllers
Cisco wireless LAN controllers are part of the Cisco Unified Wireless Network LAN feature set and are responsible for handling systemwide wireless LAN functions across an entire wireless network. Cisco wireless LAN controllers are designed to smoothly integrate into existing enterprise networks. They communicate with Cisco Aironet lightweight access points over any Layer 2 (Ethernet) or Layer 3 (IP) infrastructure using the Lightweight Access Point Protocol (LWAPP).

Wireless LAN Management
Network managers need reliable, cost-effective tools for wireless LAN planning, configuration, and management. These tools must be centrally available and support simplified operations and easy-to-use graphical interfaces. Cisco wireless LAN management options are determined based on the type of access points deployed and the features required.

  • Lightweight access points may be managed with Cisco wireless LAN controllers and the Cisco Wireless Control System (WCS).
  • A Cisco Wireless Location Appliance may be added for advanced features such as wireless voice over IP (VoIP) and location services, as well as advanced wireless security features, such as Network Admission Control (NAC), the Cisco Self-Defending Network, and guest access.
  • Autonomous access points may be configured with the CiscoWorks Wireless LAN Solution Engine (WLSE) or CiscoWorks Wireless LAN Solution Engine Express.

Cisco Wireless Control System
Cisco Wireless Control System (WCS) is a Windows or Linux server-based platform for wireless LAN planning, configuration, and management. It provides a powerful foundation by which IT managers can design, control, and monitor enterprise wireless networks from a centralized location, simplifying operations and reducing total cost of ownership.

Cisco Catalyst 3750G Integrated Wireless LAN Controller
The Cisco Catalyst® 3750G Integrated Wireless LAN Controller is a Cisco 4400 Series Wireless LAN controller integrated into the Cisco Catalyst 3750G Switch. The Cisco Catalyst 3750G Integrated Wireless LAN Controller works in conjunction with Cisco Aironet Series lightweight access points, the Cisco Wireless Control System (WCS), and the Cisco Wireless Location Appliance to deliver a secure and unified wireless solution that supports mission-critical wireless data, voice, and video applications.

Cisco Catalyst 6500 Series Wireless Services Module (WiSM)
The Cisco WiSM is a member of the Cisco wireless LAN controller family. It works in conjunction with Cisco Aironet lightweight access points, the Cisco Wireless Control System (WCS) and the Cisco Wireless Location Appliance to support mission-critical wireless data, voice, and video applications. It provides real-time communication between lightweight access points and other WLAN controllers to deliver a secure and unified wireless solution.

Cisco Wireless LAN Controller Module for Integrated Services Routers (ISR)
The Cisco Wireless LAN Controller Module allows small and medium-sized businesses (SMBs) and enterprise branch offices to cost-effectively deploy and manage secure WLANs. The module provides unparalleled security, mobility, and ease of use for business-critical WLANs, delivering the most secure enterprise-class wireless system available. As a Cisco Integrated Services Router module, it delivers centralized security policies, wireless Intrusion Prevention System (IPS) capabilities, award-winning RF management, quality of service (QoS), and Layer 3 fast secure roaming for WLANs. The Cisco Wireless LAN Controller Module manages up to six Cisco Aironet lightweight access points and is supported on Cisco 2800 and 3800 Series Integrated Services Routers and Cisco 3700 Series Routers.

CiscoWorks Wireless LAN Solution Engine
The CiscoWorks Wireless LAN Solution Engine (WLSE) is available as a management tool for Cisco Aironet autonomous access points and wireless bridges. CiscoWorks WLSE is an easily deployed and scalable management platform for managing hundreds to thousands of Cisco Aironet autonomous access points and wireless bridges.

CiscoWorks Wireless LAN Solution Engine (WLSE) Express
The WLSE Express is a complete wireless LAN management solution with an integrated authentication, authorization, and accounting (AAA) server for small to medium-sized enterprise facilities or branch offices using Cisco Aironet autonomous access points and wireless bridges.

Wireless LAN Location Services

Cisco Wireless Location Appliance
The Cisco Wireless Location Appliance is the industry's first location solution that simultaneously tracks thousands of devices from directly within the WLAN infrastructure. The Cisco Wireless Location Appliance brings the power of a cost-effective, high-resolution location solution to critical applications such as high-value asset tracking, IT management, and location-based security. This easy-to-deploy solution smoothly integrates with Cisco wireless LAN controllers and Cisco Aironet lightweight access points to track the physical location of wireless devices, including Wi-Fi-enabled laptops, voice handsets, Wi-Fi tags, and rogue devices, to within a few meters.

Cisco Aironet Family of Access Points:

Table summarizes the complete Cisco Aironet Family of access points.

Cisco Aironet Family of Access Points
Product Features and Benefits
Access Points for Offices and Similar Environments
Cisco Aironet 1130AG Series Access Point Cisco Aironet 1130AG Series Access Point Device

Dual-band lightweight or autonomous access point with integrated antennas for easy deployment in offices and similar RF environments

  • Two high-performance IEEE 802.11a and 802.11g radios offering 108 Mbps of capacity
  • 2.4 and 5 GHz integrated diversity omnidirectional antennas for easy deployment without the need for external antennas
  • Available in either a lightweight version or an autonomous version that may be field-upgraded to lightweight operation
  • Low-profile plastic case
  • 32 MB of memory with 16 MB of storage
  • Operating temperature range of 32 to 104°F (0 to 40°C)
  • Inline power support (Cisco pre-standard and 802.3af)
  • Console port for management
  • Support for the Cisco Self-Defending Network, NAC, WPA, and 802.11i/WPA2
  • Integrated and secure mounting system
  • UL2043-rated for placement in plenum areas
Cisco Aironet 1100 Series Access Point Cisco Aironet 1100 Series Access Point Device

Single-band lightweight or autonomous access point with integrated antennas for easy deployment in offices and similar environments

  • Single 802.11g radio offering 54 Mbps of capacity
  • 2.4 GHz integrated diversity dipole antennas
  • Available in an autonomous version only
  • 16 MB of memory with 8 MB of storage
  • Operating temperature range of 32 to 104°F (0 to 40°C)
  • Inline power support (Cisco pre-standard)
  • Support for the Cisco Self-Defending Network, NAC, WPA, and 802.11i/WPA2
  • Integrated and secure mounting system
  • UL2043-rated for placement in plenum areas
Access Points for Challenging Indoor RF Environments
Cisco Aironet 1250 Series Access Point Cisco Aironet 1250 Series Access Point Device
  • Wi-Fi 802.11n draft 2.0 Certified
  • Data rates of up to 300 Mbps per radio, 600 Mbps per access point
  • Enhanced reliability and predictability with Multiple-input, multiple-output (MIMO)
  • Modular field-upgradeable design with easy-to-install modules
  • 2.4-GHz and 5-GHz radio modules
  • Both inline and local powering options
  • Backward compatibility with existing 802.11a/b/g clients
  • Integrated RF Management capabilities
  • Supports up to 24 non-overlapping channels
  • External RP-TNC antenna connectors for both 2.4-GHz and 5-GHz radios
  • Robust Dynamic Frequency Selection (DFS) support
Cisco Aironet 1240AG Series Access Point Cisco Aironet 1240AG Series Access Point Device

Second-generation dual-band lightweight or autonomous access point with dual diversity antenna connectors for challenging RF environments

  • Two high-performance IEEE 802.11a and 802.11g radios offering 108 Mbps of capacity
  • 2.4 and 5 GHz dual-diversity RP-TNC connectors for external antenna support
  • Available in either a lightweight version, or an autonomous version that may be field-upgraded to lightweight operation
  • Rugged metal case
  • 32 MB of memory with 16 MB of storage
  • Operating temperature: -4 to 131°F (-20 to 55°C)
  • Inline power support (Cisco pre-standard and 802.3af)
  • Console port for management
  • Support for the Cisco Self-Defending Network, NAC, WPA, and 802.11i/WPA2
  • Complete with integrated and secure mounting system
  • UL2043-rated for placement in plenum areas
Cisco Aironet 1230AG Series Access Point Cisco Aironet 1230AG Series Access Point Device

First-generation dual-band lightweight or autonomous access point with dual-diversity antenna connectors for challenging RF environments

  • Two high-performance IEEE 802.11a and 802.11g radios offering 108 Mbps of capacity
  • 2.4 and 5 GHz dual-diversity RP-TNC connectors for external antenna support
  • Available in either a lightweight version or an autonomous version that may be field-upgraded to lightweight operation
  • Rugged metal case
  • 16 MB of memory with 8 MB of storage
  • Operating temperature: -4 to 131°F (-20 to 55°C)
  • Inline power support (Cisco pre-standard)
  • Console port for management
  • Support for the Cisco Self-Defending Network, NAC, WPA, and 802.11i/WPA2
  • Complete with integrated and secure mounting system
  • UL2043-rated for placement in plenum areas
Cisco Aironet 1200 Series Access Point Cisco Aironet 1200 Series Access Point Device

Single-band lightweight or autonomous access point with dual-diversity antenna connectors for challenging RF environments

  • Single high-performance 802.11g radio offering 54 Mbps of capacity
  • Field-upgradable to support 802.11a with a hardware upgrade module
  • 2.4 GHz dual-diversity RP-TNC connectors for external antenna support
  • Available in either a lightweight version or an autonomous version that may be field-upgraded to lightweight operation
  • Rugged metal case
  • 16 MB of memory with 8 MB of storage
  • Operating temperature: -4 to 122°F (-20 to 50°C)
  • Inline power support (Cisco pre-standard)
  • Console port for management
  • Support for the Cisco Self-Defending Network, NAC, WPA, and 802.11i/WPA2
  • Complete with integrated and secure mounting system
  • UL2043-rated for placement in plenum areas
Cisco Aironet 1300 Series Outdoor Access Point/Bridge Cisco Aironet 1300 Series Outdoor Access Point/Bridge Device

Single-band lightweight or autonomous access point and wireless bridge with a NEMA-4 compliant case for mounting in outdoor areas
Note: The Cisco Aironet 1300 Series supports LWAPP when operating as an access point. When it operates in bridge mode, however, it does not support the LWAPP protocol.

  • Single 802.11g radio offering 54 Mbps of capacity
  • 2.4 GHz dual-diversity RP-TNC connectors for external antenna support
  • Configurable as an autonomous access point, wireless bridge, or as a workgroup bridge
  • Support for both point-to-point and point-to-multipoint configurations
  • Weather resistant NEMA-4 compliant case
  • Integrated or optional external antennas for flexibility in deployment
  • 16 MB of memory with 8 MB of storage
  • Operating temperature range of -22 to 131°F (-30 to 55°C)
  • Inline power support (Cisco pre-standard)
  • Console port for management
  • Support for the Cisco Self-Defending Network, NAC, WPA, and 802.11i/WPA2
  • Complete with Integrated and secure mounting system
  • UL2043-rated for placement in plenum areas
  • Integrated or optional external antennas for flexibility in deployment
Cisco Aironet 1500 Series Lightweight Outdoor Mesh Access Point Cisco Aironet 1500 Series Access Point Device

Lightweight outdoor mesh access point that enables cost-effective, scalable deployment of secure outdoor wireless LANs

  • Dual 802.11a/g radio support a maximum data rate of 54 Mbps
  • 802.11b/g for access and 802.11a for backhaul
  • Support for point-to-point or point-to-multipoint and mesh architecture configurations
  • Patent-pending Adaptive Wireless Path Protocol for intelligent wireless routing capability
  • Weather resistant NEMA-4 compliant case
  • Operating temperature range of -40 to 55°C (-40 to 131°F)
  • Support for the Cisco Self-Defending Network, NAC, WPA, and 802.11i/WPA2

Documentation:

Download the Cisco Aironet 1100 Series Access Point Datasheet (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.

Download the Cisco Aironet Wireless Access Points Solution Datasheet (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.

הערות תמחור:
