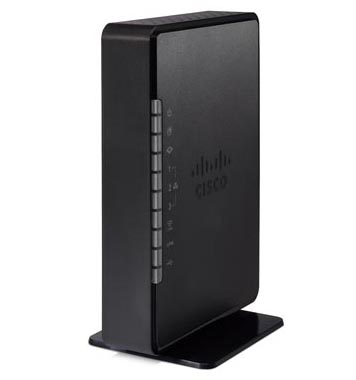

Cisco RV132W ADSL2+ Wireless-N VPN Router
ADSL2+ Connectivity for Small Businesses
מחירים נוספים מופיעים למטה, או לחצו כאן!
שימו לב: כל המחירים באתר כוללים מע"מ. החיוב יבוצע על פי שער "העברות והמחאות מכירה" של המטבע (דולר אמריקאי) ביום אישור ההזמנה.
Overview:
The Cisco RV132W Wireless-N ADSL2+ VPN Router is easy to use, set up, and deploy. This flexible router offers great performance and is suited for small or home offices (SOHO) and smaller deployments.
This networking-in-a-box model offers a quick deployment process that only takes a few minutes to set up using a web-based user interface.
Features:
- VPN security
- Built-in three-port Fast Ethernet switch
- Asymetrical Digital Subscriber Line 2 plus (ADSL2+) connectivity
- Fast Ethernet WAN
- USB 3G/4G/LTE
- Limited lifetime warranty
- Industry-leading support
- Internal antennas
- Sleek new design
The RV132W can be used to connect to an ADSL2+ interface or a regular Ethernet WAN interface. The model supports the free Cisco Small Business FindIT Network Discovery Utility, which allows for automatic discovery and one-click software downloads.
Specifications:
| Product Specifications | |
|---|---|
| Standards | IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1D, 802.1p, 802.1w (Rapid Spanning Tree), 802.1X (security authentication), 802.1Q (VLAN), 802.11i (Wi-Fi Protected Access [WPA2] security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460), Routing Information Protocol (RIP) v1 (RFC 1058), RIP v2 (RFC 1723) |
| Ports | LAN, WAN, USB, console |
| Switch | Power button (on, off) |
| Buttons | Reset, Wi-Fi on, off |
| Cabling type | Category 5e or better |
| LEDs | Power, DSL or WAN, Internet, LAN (ports 1-3), wireless, VPN, USB |
| Operating system | Linux |
| Network | |
| Network protocols |
|
| LAN | 3 10/100-Mbps LAN ports with a managed switch |
| WAN | 1 10/100-Mbps FE WAN port 1 ADSL2+ |
| WLAN | Built-in high-speed 802.11n wireless access point |
| Routing protocols | Static routing Dynamic routing RIP v1 and v2 Inter-VLAN routing |
| Network Address Translation (NAT) | Port Address Translation (PAT), Network Address Port Translation (NAPT) protocol |
| VLAN support | Port-based and 802.1Q tag-based VLANs |
| Number of VLANs | 6 active VLANs (2-4094 range) |
| IPv6 | Dual-stack IPv4 and IPv6 6rd Stateless address auto-configuration DHCPv6 server for IPv6 Clients on a LAN DHCPv6 client for WAN connectivity Internet Control Message Protocol (ICMP) v6 Static IPv6 routing Dynamic IPv6 routing with RIPng |
| Network edge (DMZ) | Software-configurable to any LAN IP address |
| Layer 2 | 802.1Q-based VLANs, 6 active VLANs |
| Security | |
| Firewall | Stateful packet inspection (SPI) firewall, port forwarding and triggering, denial-of-service (DoS) prevention, software-based DMZ DoS attacks prevented: SYN Flood Echo Storm ICMP Flood UDP Flood TCP Flood Block Java, cookies, active-X, HTTP proxy |
| Access control | IP access control lists; MAC-based wireless access control |
| Content filtering | Static URL blocking or keyword blocking |
| Secure management | HTTPS, username and password complexity |
| Wi-Fi Protected Setup (WPS) | WPS |
| User privileges | 2 levels of access: admin and guest |
| Quality of Service (QoS) | |
| Quality of Service (QoS) | 802.1p port-based priority on LAN ports, application-based priority on WAN ports 4 queues Differentiated Services Code Point (DSCP) support Class of Service (CoS) Bandwidth management for service prioritization |
| Performance | |
| NAT throughput | 75 Mbps (Ethernet WAN) |
| Concurrent sessions | 2000 |
| IPsec VPN throughput (3DES, AES) | 3 Mbps |
| Configuration | |
| Web user interface | Simple, browser-based configuration (HTTP, HTTPS) |
| Command-line interface (CLI) | Command line using SSH |
| Management | |
| Web user interface | Simple, browser-based configuration (HTTP, HTTPS) |
| CLI | Command line using SSH |
| Management protocols | Web browser, Bonjour, Universal Plug and Play (UPnP) |
| Event logging | Local, syslog, email alerts |
| Network diagnostics | Ping, Traceroute, DNS lookup, and port mirror |
| Upgradability | Firmware-upgradable through a web browser, imported or exported configuration file |
| System time | Supports NTP, daylight savings, manual entry |
| Languages | GUI supports English |
| Wireless | |
| Radio and modulation type | 802.11b: direct sequence spread spectrum (DSSS), 802.11g: orthogonal frequency division multiplexing (OFDM), 802.11n: OFDM |
| WLAN | 2.4 GHz IEEE 802.11n standard-based access point with 802.11b/g compatibility |
| Operating channels | 11 North America, 13 most of Europe, auto-channels selection |
| Wireless isolation | Wireless isolation between clients |
| Internal antennas | 2 |
| Antenna gain in dBi | 3 dBi |
| Transmit power | 802.11b: 17 dBm +/- 2.5 dBm; 802.11g: 15 dBm +/- 2.5 dBm; 802.11n: 15 dBm +/- 2.5 dBm |
| Receiver sensitivity | -85 dBm at 11 Mbps, -73 dBm at 54 Mbps, -68 dBm at mcs15, HT20, -65 dBm at mcs15, HT40 |
| Radio frequency | Single-band, works on 2.4 GHz |
| Active WLAN clients | Supports up to 50 concurrent clients |
| Multiple SSIDs | Supports multiple Service Set Identifiers (SSIDs), up to 4 separate virtual networks |
| Wireless VLAN map | Supports SSID to VLAN mapping with wireless client isolation |
| WLAN security | Wired Equivalent Privacy (WEP), WPA, WPA2-PSK, WPA2-ENT, 802.11i |
| Wi-Fi Multimedia (WMM) | WMM, WMM power save (WMM-PS) |
| Environmental | |
| Power | 12V 1A |
| Certifications | FCC, CE, IC, Wi-Fi |
| Operating temperature | 0° to 40°C (32° to 104°F) |
| Storage temperature | -20° to 70°C (-4° to 158°F) |
| Operating humidity | 10% to 85% non-condensing |
Documentation:
Download the cisco rv132w adsl2+ wireless-n vpn router data sheet (.pdf)
